How to setup OAuth properly

[altear147]

@mark-robustelli

oh, I changed client id in identity provider to app id,

the error dialog still the same error

{
"error" : "invalid_client",
"error_description" : "client_id: {"still be google client id not app id"}apps.googleusercontent.com is not valid.",
"error_reason" : "invalid_client_id"
}

it seems the id that was shown in the error dialog
is from the web service controller "process.env.FUSIONAUTH_CLIENT_ID"

@Get("oauth/login")
async login(@Req() req: Request, @Res() res: Response) {
const fusionAuthURL = ${process.env.FUSIONAUTH_ISSUER}/oauth2/authorize?client_id=${process.env.FUSIONAUTH_CLIENT_ID}&redirect_uri=${process.env.FUSIONAUTH_REDIRECT_URI}&response_type=code&scope=openid email profile;
return res.redirect(fusionAuthURL);
}

but in credential page isn't complicated.

anyway, I did enable and attemp to login from fusion auth admin page

and got this error.

[mark.robustelli]

@altear147 OK, let's try this. Go into the FusionAuth AdminUI.

Go to Applications
Find your application
select View
find the OAuth2 & OpenID Connect Integration details section
copy the OAuth IdP login URL

use that for the value of the url. Let me know if that works.

[altear147]

@mark-robustelli
Hi thank you for replying, and sorry for away a few days due to my group shut down the service during weekend and night time.

I try using url from this "OAuth IdP login URL", as a login function

@Get("oauth/login")
async login(@Req() req: Request, @Res() res: Response) {
const fusionAuthURL = ${process.env.FUSIONAUTH_ISSUER}/oauth2/authorize?client_id=1133784f-7f6e-4eda-a33b-7fd1164f6509&response_type=code&redirect_uri=${"my redirect url"};
return res.redirect(fusionAuthURL);
}

but it returns me
{
"error" : "invalid_request",
"error_description" : "Invalid redirect_uri {my redirect url},
"error_reason" : "invalid_redirect_uri"
}

PS. I replaced the direct url as a "my redirect url".

the value of my direct url is a url path that request to this

@Get("oauth/callback")
async callback(@Req() req: Request, @Res() res: Response) {
const user = req.user;

// skip access token

// res.cookie("token", jwtToken, { httpOnly: true });

return res.redirect(`${process.env.FRONTEND_URL}`);

}

[mark.robustelli]

@altear147 OK, it looks like the redirect_uri does not match what is configured in the application. Can you make sure you are supplying the correct uri?

This can be found under: Applications -> Edit -> OAuth tab

[altear147]

@mark-robustelli

redirect url is valid now, it takes me to this login page again, expect flow is using google oauth flow, but we made a progress.

[altear147]

as I replied earlier I add redirect uri in FusionAuth console and invalid_redirect_uri is gone.

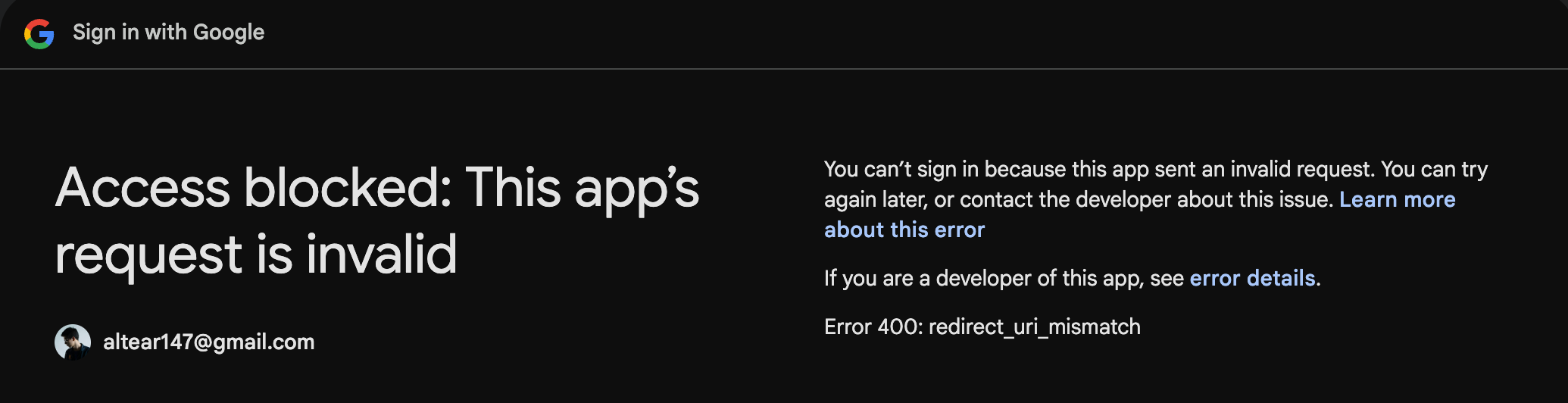

and this moment still get this error using Google Oauth flow.

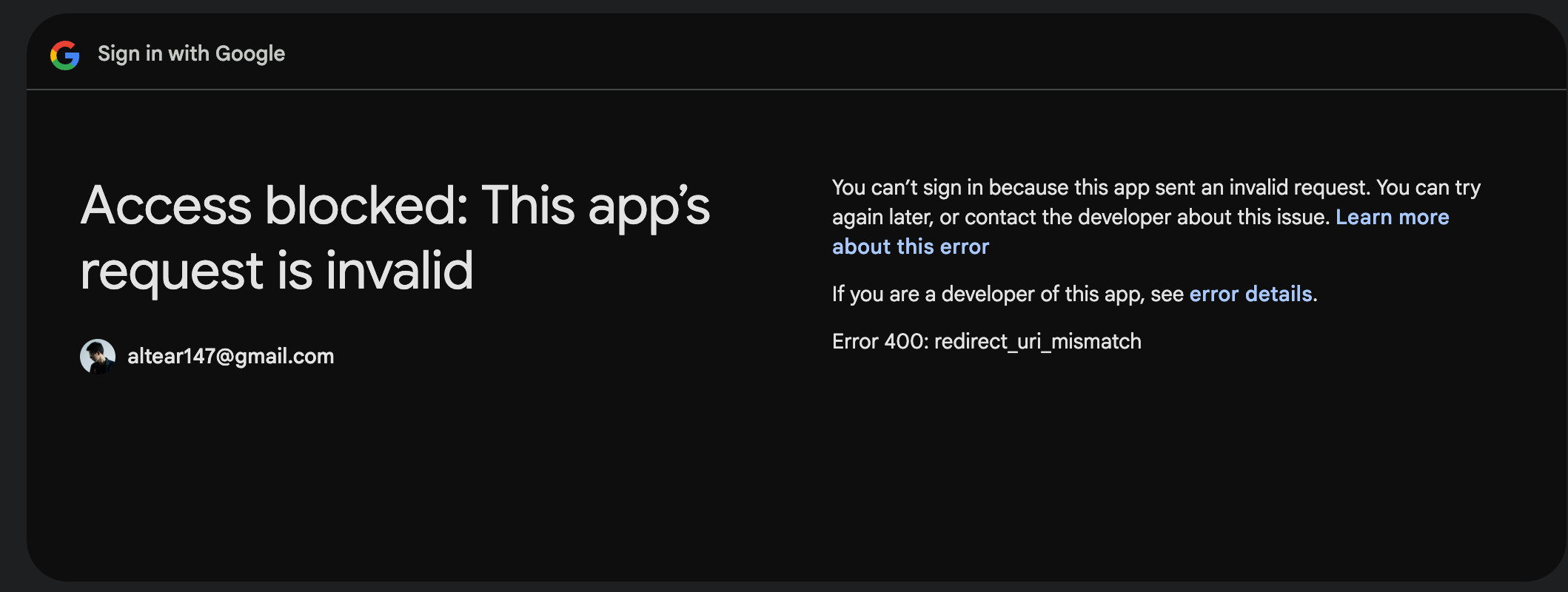

I replaced redirect uri "https://mydomain/callback" as I did in Fusionauth admin console but still get the same error.

[mark.robustelli]

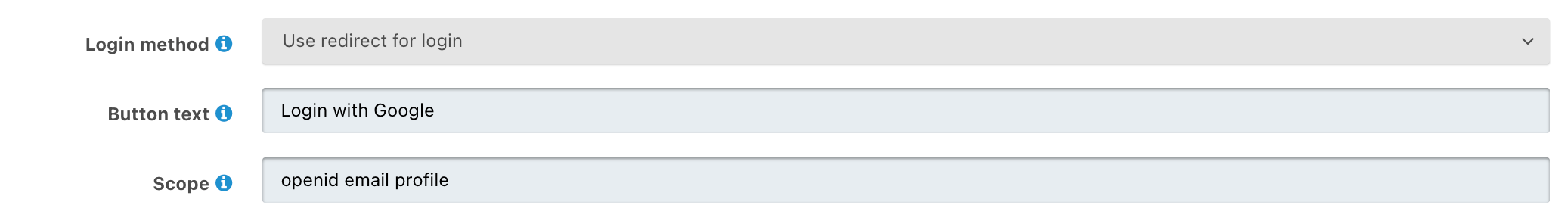

@altear147 looks like you are getting closer. If I go back to your screenshot of the provider configuration page, it looks like the scope input box is empty. Three common scopes to include are email, profile, and openid.. Please add the correct scope(s) and let me know if that works for you.

[altear147]

@mark-robustelli

is this what you mentioned?

I had added it a few days ago and it shows me this error

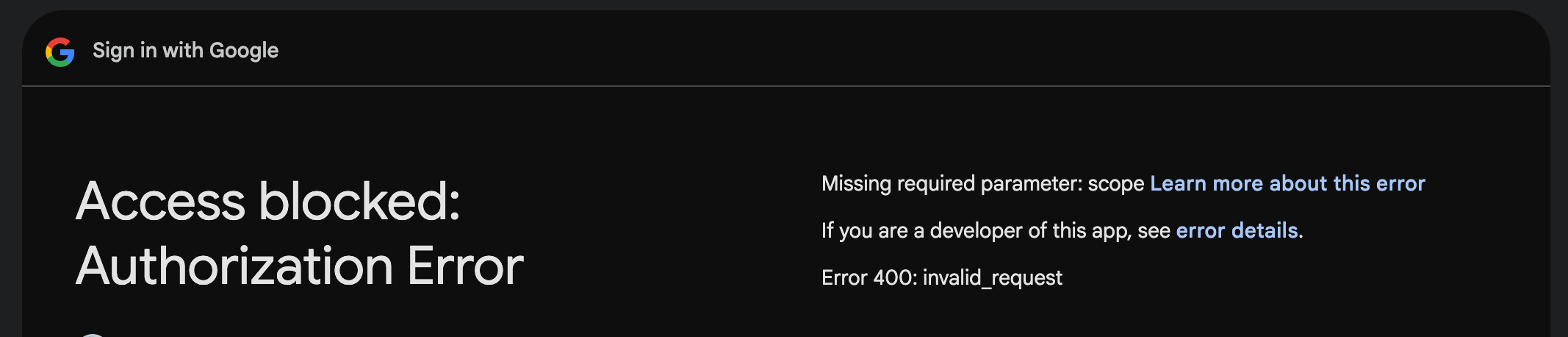

Actually, we made a progress since a few days ago the error said I need to define scope.

[altear147]

@mark-robustelli

and to be clear, the error dialog I posted above was from fusionauth admin console

but if I call the request to this function

@Get("oauth/login")
async login(@Req() req: Request, @Res() res: Response) {
const fusionAuthURL = ${process.env.FUSIONAUTH_ISSUER}/oauth2/authorize?client_id={secret}&response_type=code&redirect_uri=${"my redirect url"};
return res.redirect(fusionAuthURL);
}

it still returns me
{
"error" : "invalid_client",
"error_description" : "client_id: {secret} is not valid.",
"error_reason" : "invalid_client_id"
}

[mark.robustelli]

@altear147 Thanks for taking the time to work with this. It is generally a pretty straight forward process taking no more than 5 minutes. I am out of the office this week, but will try to get some time to replicate what you are going through. I want to make sure I am working on the right thing, so just want to confirm that we have the same end goal. You want the 'Login with Google' button to work for an Application you created within FusionAuth, right?

[mark.robustelli]

@altear147 also did you grant these scopes in the google config?

[altear147]

@mark-robustelli

thank you for replying.

My auth platform(Nest js) was implemented on top of FusionAuth in order to make some features for authentication and authorization.

and I do want to allow a new user to sign-in and access my platform without register by using sso feature.

I defined a login and callback function(as I've written above) for the web application using redirect method.

---

I also enable sign-in google button at the fusionauth admin in order to test the credential and as I showed you that I still encouter the invalid client error.

I believe that it's not that so complicated due to the document is easy to replicate but for some reasons I still get the error.

---

Lastly I havn't seen any section in credetial page that can define scope, may you tell me about this section.

[altear147]

@mark-robustelli

oh, I saw the oauth consent screen but for some reason it redirect me to other page, looks like I'm not allowed to access this page.

but I don't think it was a root cause of my error due to the error kept showing me "invalid client id" in my redirect scenario and "redirect uri mismatch" in futionauth console scenario.

[altear147]

@mark-robustelli

I think I did misunderstand after taking a look at the document again.

for this moment I can make a redirect login from my site and retrieve access token there is some issue left at my site. I will let you know after I solve those probs.

thank you for replying.

[mark.robustelli]

@altear147 Awesome that you are making progress and thanks for keeping the post updated. I'll keep an eye on the thread, and if other issues come up, let us know.

[altear147]

@mark-robustelli

Hello, sorry for away from this topic for a week due to my other ad hoc job,

I've already solved this topic, it's not about setting on Fusionauth or google credential.

but it's because I used google's client id on Fusionauth callback and
after you told me to set applicationId in my Fusionauth admin then I used ApplicationId on google oauth's callback.

that's why it kept return me client id is invalid.

it was right under my nose, but I couldn't see it.

Thank you for reply me, that's very helpful, It would take more time if you didn't help me.
